Digital Multimeter True RMS CAT IV 9999 Counts ProScope | Forjato
Digital Multimeter True RMS 9999 Counts CAT IV 600V CAT III 1000V Colour VA Display Rechargeable NCV Model ProScope Professional
The ProScope Digital Multimeter is built for professionals who need both high-performance measurement capability and the highest level of electrical safety certification. With CAT IV 600V / CAT III 1000V protection, True RMS 9999-count precision, a full-colour VA HD display and a built-in rechargeable lithium battery — it's the most comprehensively safety-rated multimeter in the Forjato range.
Measuring AC/DC voltage and current, resistance, capacitance, frequency, temperature and continuity, with NCV non-contact detection and automatic input identification, the ProScope RMS™ delivers the professional electrical testing capability that working electricians, engineers and technicians depend on.
CAT IV 600V / CAT III 1000V — The Highest Safety Rating Available
CAT ratings define how safely a multimeter can be used at different points in an electrical installation. CAT IV is the highest category — it covers measurements at the origin of the installation, including overhead line connections, service entrance equipment, electricity meters and outdoor conductors. The ProScope's CAT IV 600V / CAT III 1000V dual rating means it is certified safe to use across the full range of UK professional electrical environments — from consumer unit work through to utility connection points.
For electricians working in commercial, industrial or utility environments, CAT IV certification is the professional standard. The ProScope meets it.
ProScope RMS™ • True RMS 9999 Counts • CAT IV 600V / CAT III 1000V • Colour VA HD Display • NCV • –40°C to 1000°C • USB Rechargeable • CE CertifiedKey Benefits of the ProScope Digital Multimeter
- CAT IV 600V / CAT III 1000V safety rating: The highest CAT classification — certified safe for use at the origin of electrical installations, including service entrance, utility connections and outdoor conductors.
- True RMS 9999 counts: Accurate measurements on linear and non-linear loads — essential for modern electronics, variable speed drives and switched-mode supplies.
- Rechargeable 3.7V 1200mAh lithium battery: USB recharging — no battery replacement cost, ready for daily professional use.

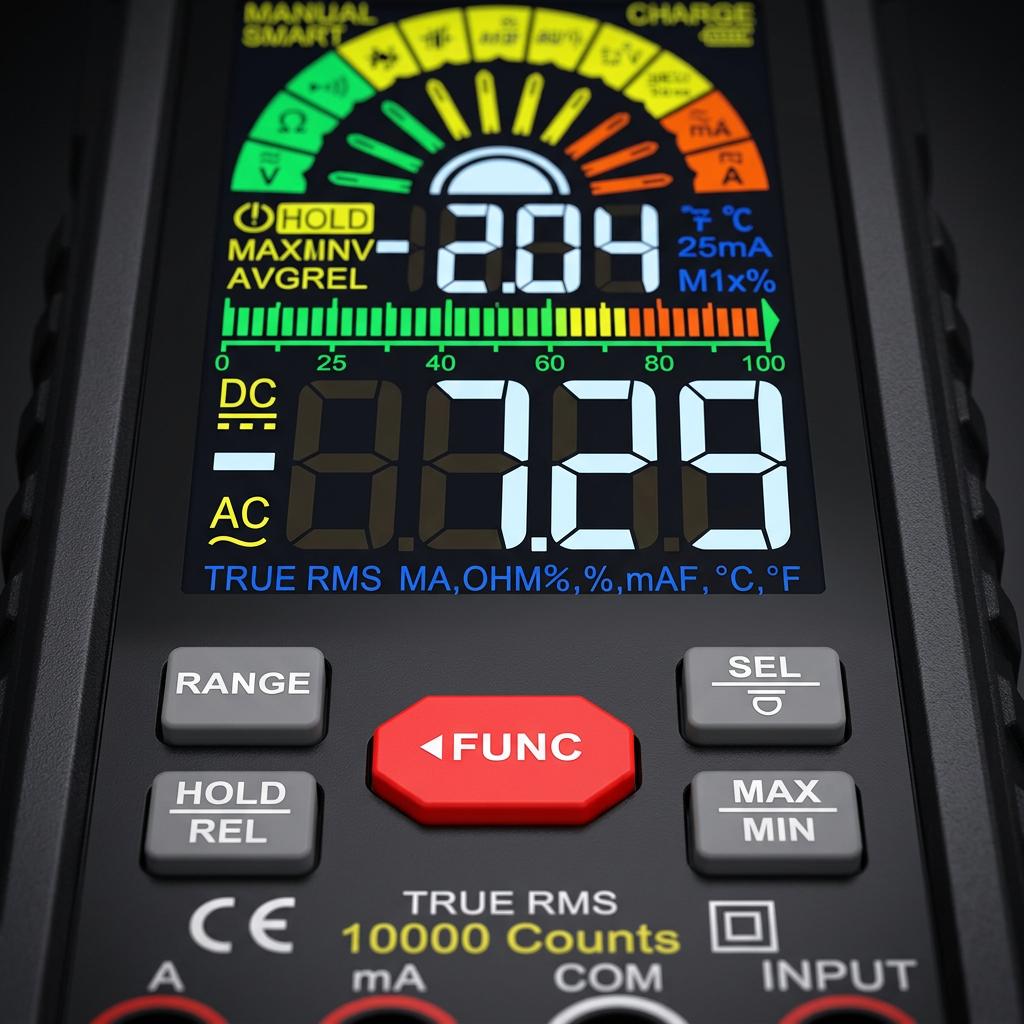

- Full-colour VA HD display: High-contrast colour display with analogue bar graph, icons and visual alerts — clear reading in any lighting condition including dark distribution boards.
- NCV non-contact voltage detection: Identify live conductors through insulation without direct probe contact — fast, safe circuit checking.
- Temperature –40°C to 1000°C: Full-range temperature measurement via included thermocouple probe — for HVAC, motor and industrial diagnostics.
- Automatic input identification and blown fuse alert: Reduces connection errors and alerts the user before a measurement attempt fails — an important safety feature for busy site work.
- Built-in torch and low battery indicator: Practical features for use in poorly lit panels, roof spaces and confined electrical enclosures.
- Carry bag included: Protective transport bag for the instrument, probes and thermocouple — keeps everything together and ready.
- CE certified: Meets UK and European safety standards for professional electrical test instruments.
Technical Specifications
| Specification | Details |
|---|---|
| Brand / Model | GVDA GD128PLUS — ProScope RMS™ |
| Type | Professional True RMS digital multimeter |
| Display | Full-colour VA HD — 9,999 counts with analogue bar |
| Ranging Mode | Auto Range and manual |
| DC Voltage | 99.99mV – 999.9V (±0.5% + 3) |
| AC Voltage | 99.9mV – 750V (±0.8% + 3) |
| DC / AC Current | 9.999mA – 9.999A (±0.8% – 1.2%) |
| Resistance | Up to 99.99MΩ (±2%) |
| Capacitance | Up to 99.99mF (±4% – 5%) |
| Frequency | 9.999Hz – 9.999MHz (±1%) |
| Temperature | –40°C to 1000°C / –40°F to 1832°F |
| NCV Detection | Yes — non-contact with alert |
| Safety Rating | CAT IV 600V / CAT III 1000V |
| Power Source | Built-in rechargeable 3.7V 1200mAh Li-ion (USB charging) |
| Additional Functions | Data hold, relative, MAX/MIN, blown fuse alert, torch, auto power-off |
| Dimensions | 166 × 83 × 29mm |
| Weight | 273g |
| Certification | CE certified |
What's in the Box
- 1 × GVDA ProScope RMS™ GD128PLUS Digital Multimeter
- 1 × Pair of test leads
- 1 × Type K thermocouple temperature probe
- 1 × USB charging cable
- 1 × Protective carry bag
Frequently Asked Questions
What does CAT IV 600V / CAT III 1000V mean and why does it matter?
CAT ratings (IEC 61010-1) classify the level of electrical hazard a multimeter is designed to withstand safely. CAT IV is the highest category — covering measurements at the origin of the installation, including service entrances, electricity meters, overhead line connections and outdoor conductors. CAT III covers distribution panels, consumer units and fixed equipment. The ProScope's dual CAT IV 600V / CAT III 1000V rating means it provides the maximum level of certified protection for professional electricians working across the full range of UK electrical environments — from domestic consumer unit work to commercial and industrial installations.
Is the ProScope suitable for use on commercial and industrial electrical installations?
Yes — the CAT IV 600V / CAT III 1000V rating, True RMS measurement and comprehensive measurement capability make the ProScope appropriate for professional use in residential, commercial and industrial electrical environments. Always follow safe working practices, relevant UK electrical safety regulations (including HSE guidance and IET Wiring Regulations) and verify that the instrument rating is appropriate for your specific application before use.
What does the blown fuse alert function do?
The ProScope's automatic input identification system detects when test leads are connected to the wrong input sockets and alerts the user before a measurement is taken. The blown fuse alert specifically warns when the internal current measurement fuse has failed — preventing inaccurate current readings and alerting the user that the fuse needs replacing before the instrument is used for current measurement again. Both features significantly reduce the risk of measurement errors and instrument damage on site.
How does the ProScope compare to the other multimeters in the Forjato range?
The ProScope is the only multimeter in the Forjato range with an explicit CAT IV 600V / CAT III 1000V safety rating — the highest available. It also includes a protective carry bag and Type K thermocouple probe as standard. The VoltMaster (19,999 counts) offers the highest measurement resolution. The SmartRange (6,000 counts, True RMS, NCV) is the rechargeable mid-range option. The MicroPro is the compact entry-level instrument. Choose the ProScope when CAT-rated safety for professional installation work is the priority.
