Digital Multimeter 6000 Counts SmartRange | Forjato

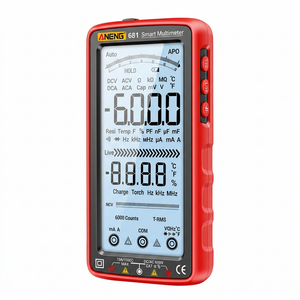

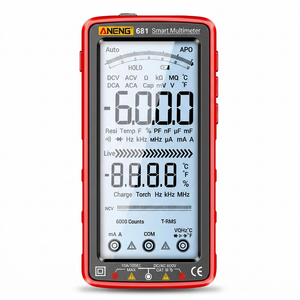

Digital Multimeter True RMS 6000 Counts Auto Ranging NCV Non Contact Voltage Temperature Rechargeable Model SmartRange Professional
The SmartRange Digital Multimeter is a professional-grade test instrument built for electricians, electronics technicians, engineers and serious DIYers who need more than a basic voltmeter. With True RMS measurement, 6000-count resolution, NCV non-contact voltage detection, temperature measurement and a built-in rechargeable battery, it's one of the most capable compact multimeters available at this level.
Auto ranging across all measurement functions means the SmartRange selects the correct range automatically — reducing setup time, eliminating dial errors and letting you focus on the test rather than the meter.
True RMS, NCV and Temperature — Professional Capability in One Instrument
True RMS is the critical difference between a professional multimeter and a basic one. Where standard meters give inaccurate readings on non-sinusoidal AC waveforms — common in modern electronics, variable speed drives and switched-mode power supplies — the SmartRange's True RMS function measures the actual effective value of the signal, giving reliable readings regardless of waveform shape.

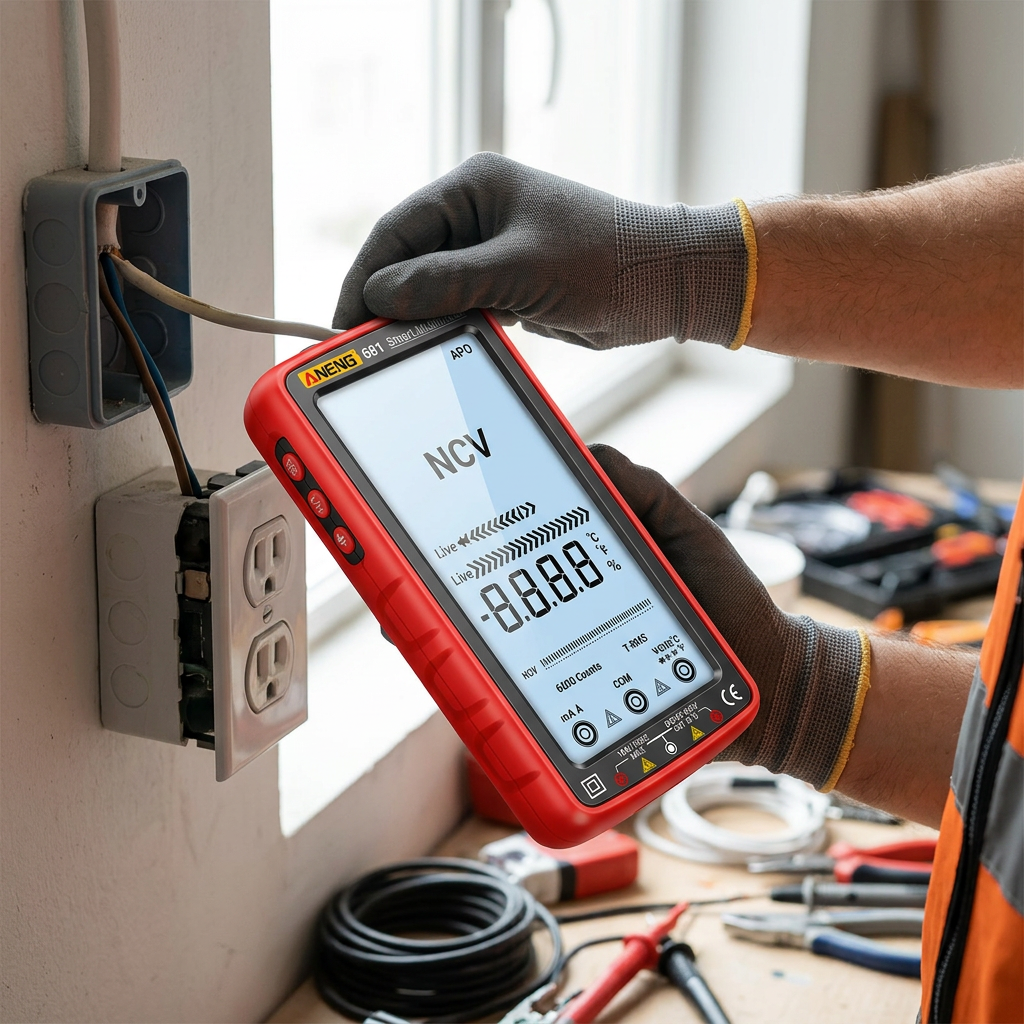

The NCV (Non-Contact Voltage) detector identifies live cables, wires and connections through insulation without direct contact — the fastest and safest way to confirm whether a circuit is live before working on it. Essential for electricians and anyone working on consumer unit circuits, junction boxes and cable routing.
SmartRange 681™ • True RMS • 6000 Counts • NCV Non-Contact • Temperature –40°C to 1000°C • Rechargeable Battery • CE CertifiedKey Benefits of the SmartRange Multimeter
- True RMS with 6000 counts: Accurate, stable measurements on sinusoidal and non-sinusoidal AC signals — essential for modern electronics, inverters and variable frequency drives.
- Rechargeable battery: No ongoing battery replacement cost — charge via USB and go. Ideal for daily professional use.

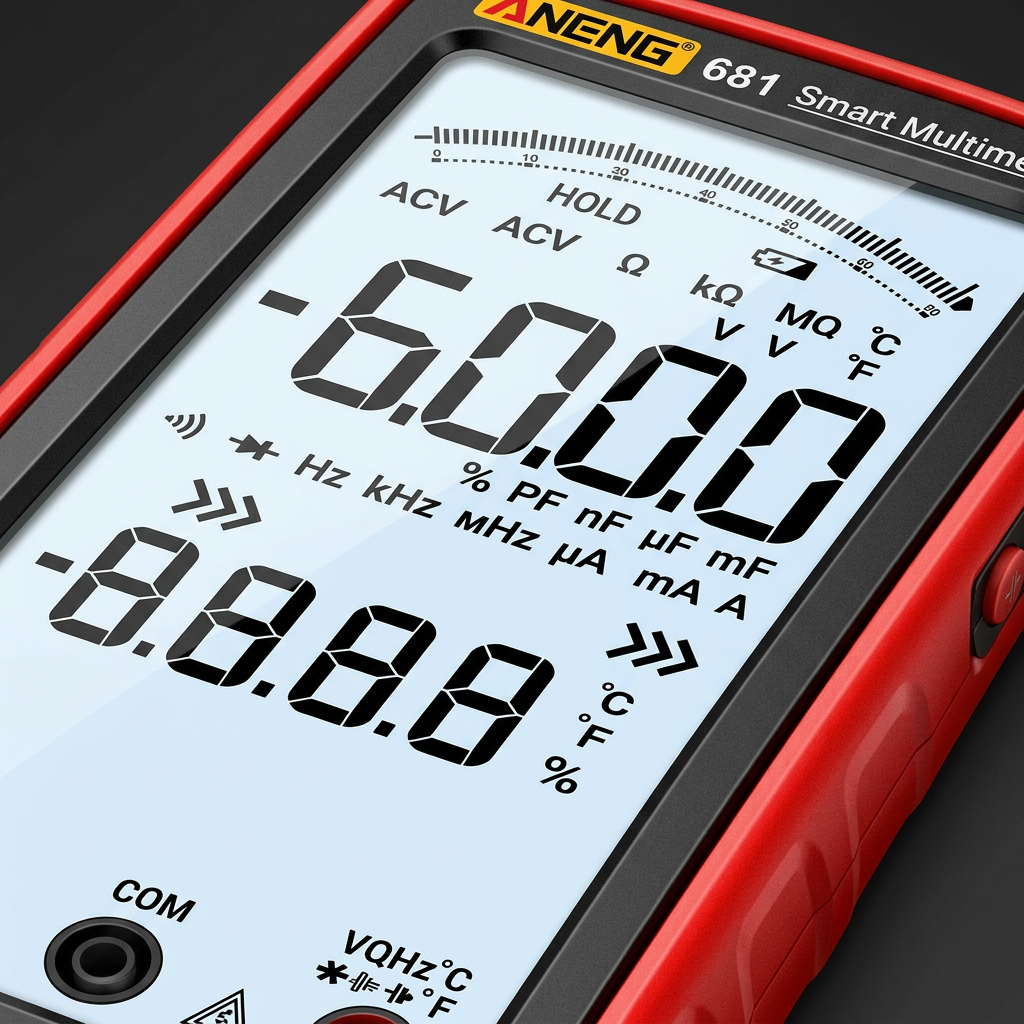

- Large backlit LCD display: Clear, high-contrast readout in any lighting condition — including dark roof spaces, under-floor voids and poorly lit plant rooms.
- NCV non-contact voltage detection: Audible and visual alert when voltage is present — test for live circuits safely through cable insulation without probe contact.
- Temperature measurement –40°C to 1000°C: For HVAC diagnostics, motor temperature checks, pipe temperature measurement and industrial applications.
- Auto ranging: Automatic range selection across all measurement parameters — no manual dial adjustment, minimal setup time.
- Built-in torch: Integrated LED torch for safe use in dark or poorly lit environments without needing a separate light source.
- Data hold and auto power-off: Hold readings for easy recording; auto power-off protects the battery during inactivity.
- ABS and silicone construction: Drop-resistant, professional-grade body built for sustained site and workshop use.
- Overload and low-voltage protection: Built-in safety protection across all measurement ranges.
Technical Specifications
| Specification | Details |
|---|---|
| Brand / Model | ANENG 681 — SmartRange 681™ |
| Type | Professional True RMS auto-ranging digital multimeter |
| Display | Large backlit LCD — 6000 counts |
| Ranging Mode | Auto range |
| DC Voltage | 0 – 1000V (±0.8% + 10) |
| AC Voltage | 0 – 750V (±1.0% + 10) |
| DC / AC Current | 0 – 10A (±2.5% + 10) |
| Resistance | 0Ω – 60MΩ (±2.5% + 5) |
| Capacitance | 0nF – 100mF (±5% + 5) |
| Temperature | –40°C to 1000°C / –40°F to 1832°F |
| Frequency | 0 – 999.9kHz (±0.8% + 3) |
| NCV Detection | Yes — non-contact with audible and visual alert |
| Torch | Yes — built-in LED |
| Data Hold | Yes |
| Auto Power-Off | Yes |
| Power Source | Built-in rechargeable battery (USB charging cable included) |
| Body Material | ABS and silicone — drop-resistant professional build |
| Dimensions | 150.8 × 74.8 × 23.8mm |
| Certification | CE certified |

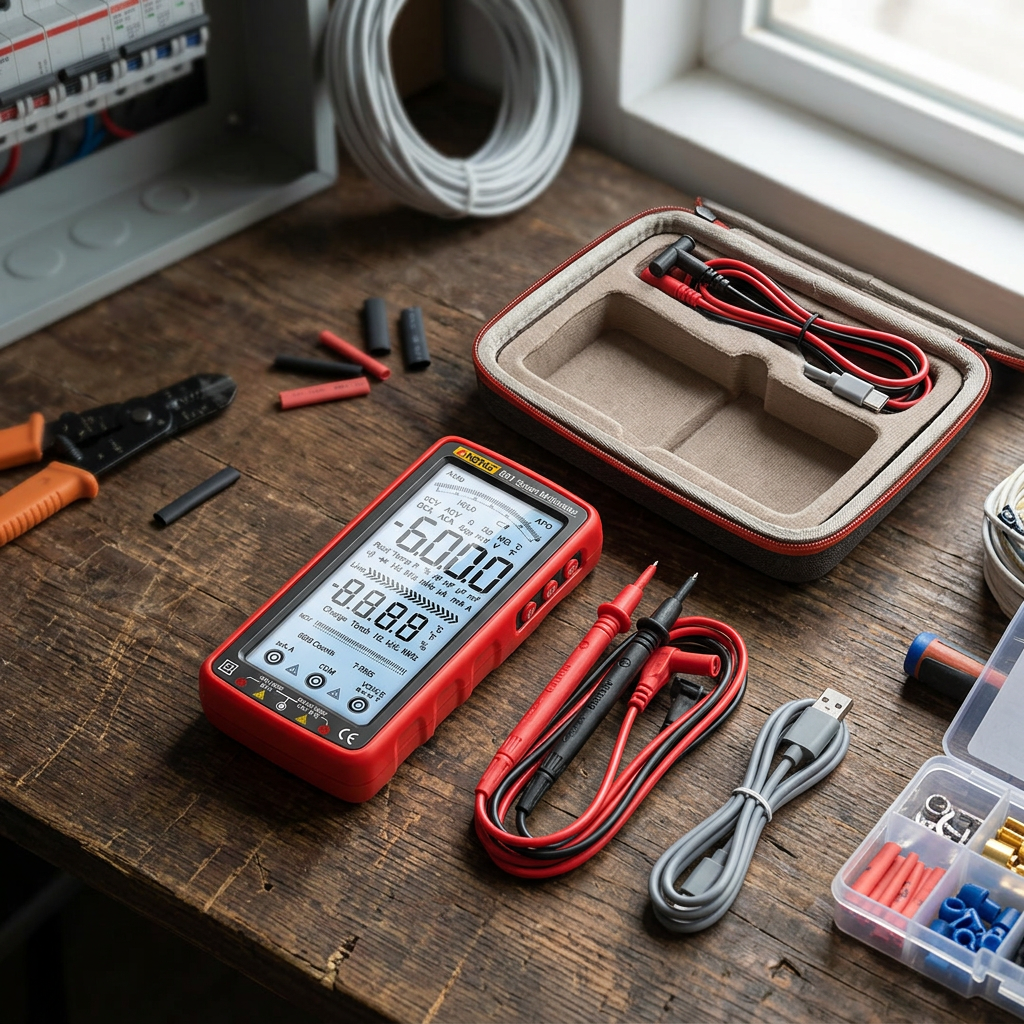

What's in the Box
- 1 × ANENG SmartRange 681™ Digital Multimeter
- 1 × Pair of test leads (red and black)
- 1 × USB charging cable
- 1 × User manual
Frequently Asked Questions
Is the SmartRange suitable for professional electrical work?
Yes — with True RMS, 6000 counts, NCV detection, auto ranging and temperature measurement, the SmartRange 681™ is a capable professional instrument for electricians, HVAC engineers, electronics technicians and maintenance engineers. Always follow safe working practices and relevant UK electrical safety regulations when testing live circuits.
What is True RMS and why does it matter?
True RMS (Root Mean Square) measures the actual effective value of an AC signal regardless of its waveform shape. Standard average-responding multimeters only give accurate readings on pure sine waves — the SmartRange's True RMS function delivers accurate measurements on the non-sinusoidal waveforms commonly generated by modern electronics, variable speed motor drives, inverters and switch-mode power supplies. For professional electrical work, True RMS is essential for reliable measurements.
How does the NCV function work?
The NCV (Non-Contact Voltage) detector identifies the presence of AC voltage through cable insulation without the test probes needing to make direct contact with the conductor. Hold the tip of the SmartRange near a cable, socket or connection — if voltage is present, the meter gives an audible beep and visual LED alert. It's the quickest and safest way to confirm whether a circuit is live before working on it.
Is the battery rechargeable? What cable does it use?
Yes — the SmartRange 681™ has a built-in rechargeable battery. A USB charging cable is included in the kit, so there's no need for replacement batteries. This makes it significantly more economical and practical for daily professional use compared to battery-powered alternatives.
How does it compare to the MicroPro in the Forjato range?
The SmartRange is the advanced professional model — True RMS, 6000 counts, NCV non-contact detection, temperature measurement, rechargeable battery and backlit display. The MicroPro is the compact entry-level option — 1999 counts, essential AC/DC and resistance measurements, auto range, ideal for general fault-finding and domestic use. Choose the SmartRange for daily professional electrical work; the MicroPro for a capable, portable backup instrument.
Forjato Quality Standard
All instruments in the Forjato range are subject to rigorous technical selection, with verification of specifications, physical integrity and basic function before dispatch.
We work exclusively with certified manufacturers, provide full purchase documentation and post-sale support to ensure your SmartRange 681™ arrives ready for professional use — with the performance, accuracy and durability that demanding electrical work requires.
