Clamp Meter 600A True RMS NCV PowerClamp | Forjato
Digital Clamp Meter 600A 10000 Counts Colour TFT Display NCV Temperature USB-C Rechargeable Model PowerClamp Professional
The PowerClamp Digital Clamp Meter is a high-specification professional instrument for electricians, engineers and maintenance technicians who need serious current measurement capability. With 10,000-count True RMS precision, AC/DC current to 600A, a 2.0" colour TFT display, NCV non-contact voltage detection, temperature measurement to 1300°C and a built-in USB-C rechargeable battery — it's one of the most capable clamp meters available at this level.
The colour TFT display, waveform visualisation and real-time power measurement set the PowerClamp apart from basic clamp meters — giving you a dynamic view of circuit behaviour, not just a number on a screen.
10,000 Counts, Colour Display and Waveform — Professional Grade at Every Level
Where basic clamp meters show a single numerical reading, the PowerClamp shows you the full picture — real-time waveform display, power measurement mode and a 2.0" colour TFT screen with adjustable brightness that's readable in direct sunlight and in dark distribution boards alike.
The 10,000-count True RMS measurement delivers the resolution and accuracy that professional electrical testing demands — on linear and non-linear loads, across the full 600A range. Combined with USB-C recharging, you eliminate battery replacement costs and downtime entirely.
PowerClamp 10000™ • 10,000 Counts True RMS • 600A AC/DC • 2.0" Colour TFT • NCV • –55°C to 1300°C • USB-C Rechargeable • CE CertifiedKey Benefits of the PowerClamp Digital Clamp Meter
- 10,000-count True RMS: Professional-grade resolution and accuracy across all AC/DC measurement ranges — on sinusoidal and non-sinusoidal loads.
- USB-C rechargeable battery (3.7V 1500mAh): No ongoing battery cost — charge via any USB-C source and go. Built for daily professional use.

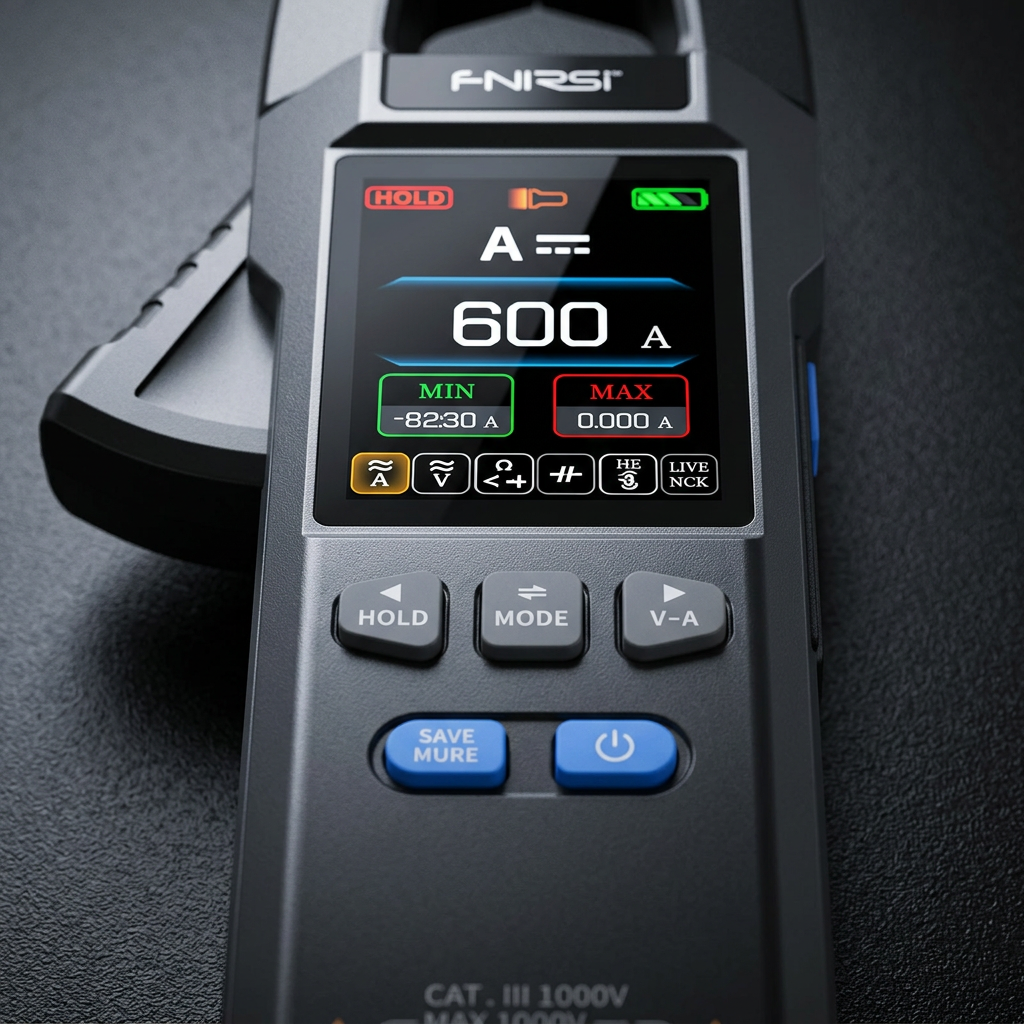

- 2.0" colour TFT display (240×320): Crisp, high-contrast colour screen with waveform display and adjustable brightness — readable in all conditions.
- 600A AC/DC current measurement: Full range for residential, commercial, industrial and automotive electrical systems.
- Temperature –55°C to 1300°C: For motor temperature checks, HVAC diagnostics, pipe temperature and industrial process monitoring.
- Waveform and power measurement display: Real-time visualisation of signal behaviour — beyond what a standard numeric meter can show.
- NCV and live/neutral identification: Non-contact voltage detection with audible/visual alert plus automatic live and neutral wire identification — faster, safer diagnostics at consumer units, junction boxes and cable runs.
- Built-in torch and adjustable backlight: Safe operation in dark distribution boards, plant rooms and poorly lit environments.
- Data hold and auto power-off: Lock readings for recording; auto power-off protects the battery during inactivity.
- CE certified: Meets safety and quality standards for professional use in the UK and Europe.
Technical Specifications
| Specification | Details |
|---|---|
| Brand / Model | FNIRSI DMC-100 — PowerClamp 10000™ |
| Type | Professional True RMS digital clamp meter |
| Display | 2.0" colour TFT (240×320) — waveform + numeric display |
| Count Resolution | 10,000 counts |
| DC Voltage | 0 – 999.9V |
| AC Voltage | 0 – 750V |
| DC / AC Current | 0 – 600A |
| Resistance | 0 – 9.99MΩ |
| Capacitance | 0 – 9,999mF |
| Temperature | –55°C to 1,300°C |
| NCV Detection | Yes — non-contact with audible and visual alert |
| Torch | Yes — built-in LED with adjustable backlight |
| Power Source | Built-in rechargeable 3.7V 1500mAh Li-ion (USB-C) |
| Data Hold | Yes |
| Auto Power-Off | Yes |
| Dimensions | 193 × 74 × 32mm |
| Certification | CE certified |
| Recommended Use | Electrical installation, HVAC, industrial maintenance, automotive diagnostics |

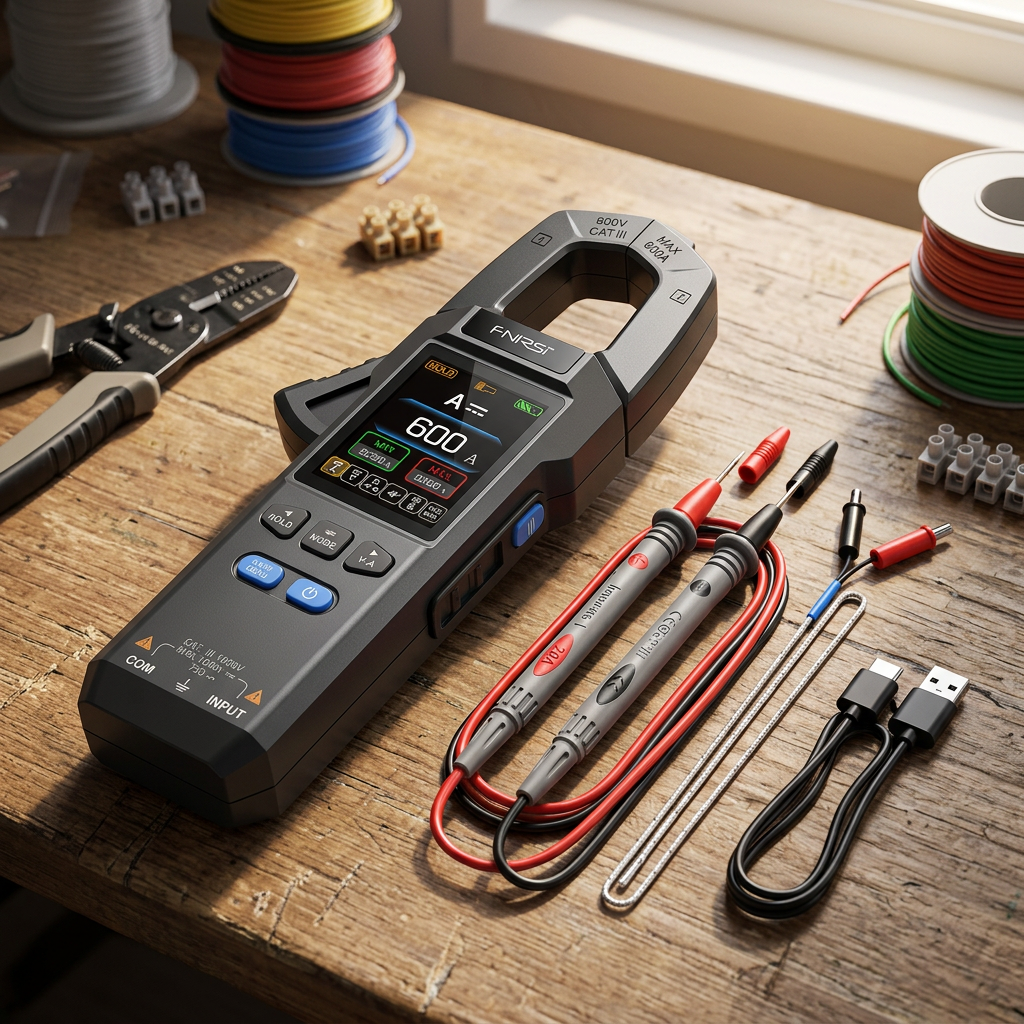

What's in the Box
- 1 × FNIRSI PowerClamp 10000™ DMC-100 Digital Clamp Meter
- 1 × Pair of test probes (red and black)
- 1 × Temperature probe (where included by manufacturer)
- 1 × USB-C charging cable
- 1 × User manual
Frequently Asked Questions
Is the PowerClamp suitable for professional electrical work on commercial and industrial sites?
Yes — with 10,000-count True RMS, 600A AC/DC capability, NCV detection and waveform display, the PowerClamp 10000™ is a capable instrument for electricians, HVAC engineers, industrial maintenance technicians and automotive diagnostics. Always follow safe working practices and relevant UK electrical safety regulations when working on live circuits. Verify the meter's CAT rating is appropriate for your specific application before use.
What is the advantage of the colour TFT display over a standard LCD screen?
The 2.0" colour TFT display provides several advantages over a monochrome LCD: it shows waveform visualisation alongside the numeric reading, uses colour to differentiate measurement modes and alerts, has adjustable brightness for use in both bright sunlight and dark distribution boards, and presents data in a more intuitive, easy-to-read format — reducing the risk of misreading values during fast-paced site work.
Can it identify live and neutral wires without making contact?
Yes — in addition to standard NCV non-contact voltage detection, the PowerClamp includes automatic live and neutral wire identification, allowing you to quickly determine which conductor is energised without removing insulation or making direct probe contact. This is particularly useful when fault-finding in cable bundles, junction boxes and consumer units.
Is the USB-C rechargeable battery genuinely practical for a full working day?
Yes — the 1500mAh lithium-ion battery provides sufficient runtime for a full professional working day of typical clamp meter use. Charge it overnight via any USB-C source (phone charger, laptop, power bank) and it's ready for the next day. The auto power-off function also conserves charge during periods of inactivity on site.
How does it compare to the SmartRange and MicroPro in the Forjato range?
The PowerClamp is a dedicated clamp meter — it measures current non-invasively through the clamp jaw, making it ideal for testing live circuits without breaking them. The SmartRange and MicroPro are conventional multimeters that measure current through inline probe connections. For current measurement on live cables and conductors without disconnection, choose the PowerClamp. For general voltage, resistance and continuity testing, the SmartRange or MicroPro are the right tools.
